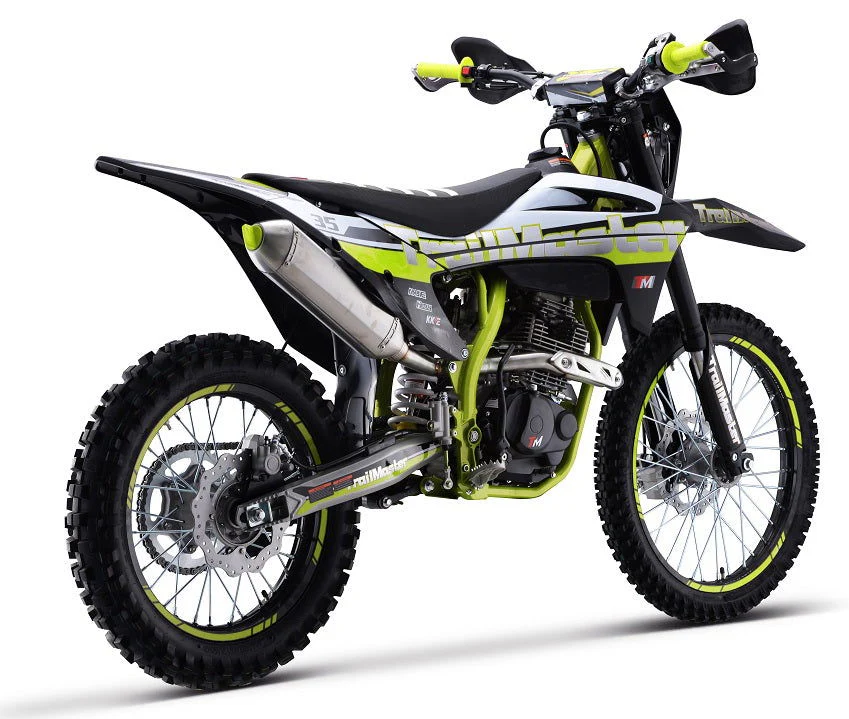

TrailMaster TM35 250cc Dirt Bike, 5-Speed Manual, Dual Disc Brakes, (21/18) Wheels

This model of TrailMaster's TM35 dirt bike boasts impressive specifications, including a powerful 249cc 4-stroke engine and a top speed of approximately 55 MPH. It is equipped with both a kick start and a new "ELECTRIC START" feature, making it easy to get going. With a seat height of 36.2" and various color options available, this full size dirt bike is sure to meet the needs of any rider. Other notable features include a 5-speed manual transmission, front and rear disc brakes, an inverted front shock, and a lightweight steel tube frame.

The TrailMaster TM35 250cc Dirt Bike features a 21/18 wheel combination and a race suspension system for optimal handling on various terrains. Its Electronic Digital CDI ignition allows for easy starting and power consistency in all gears, while the lightweight 249cc engine can reach speeds of up to 55 miles per hour. Experience natural and effortless control on this bike, designed with full motocross ergonomics.

Specifications

Engine System

• Engine Type ZS-CB250F, Single Cylinder, 4-Stroke, Air Cooling
• Displacement 249.9 ml
• Max Power 18.7 hp
• Max Torque 18/6500 N.m/r/min
• Compression Ratio 9.25:1
• Shift Type Manual Wet Multi-Plate, 1- N-2-3-4-5, 5-Gears
• Bore and Stroke72 x 61.4 mm
• Fuel Consumption≤354(g/Kw.h)
• Start Type Electric & Kick Start
• Carburetor PE28 (EPA)
• Ignition Digital CDI
• Engine Oil 10W/40
• Transmission #520 & 112L Chain, FT: 13T/RR: 47T Sprocket

Size Data

• Front Suspension Φ51*Φ54-830mm Inverted Hydraulic Forks, 150mm Travel
• Rear Shock Φ12*450mm Spring Preload None-Adjustable Shock
• Front Wheel Aluminum Rim-WT Printing , DCA Hub, FT: 1.6 x 21
• Rear Wheel Aluminum Rim-WT Printing , DCA Hub, RR: 2.15 x 18
• Front Tires 80/100-21
• Rear Tires 110/100-18
• Front Brake Dual Piston Caliper, 240mm Disc
• Rear Brake Single Piston Caliper, 240mm Disc
• Seat Ribbed TrailMaster Seat
• Headlight LED
• Fairings GS style New Fairings
• Handguard Aluminum Bracket Version

Frame/Suspension/Brake System

• Frame Lightweight ,Steel Hexagon Tube
• Swing-Arm Tube High Strength Steel Swingarm; L=560mm
• Handlebar Tapered Aluminum #6061
• Overall Size 80.3"x32.1"x48.4"
• Packing Size 67.8"x17.7"x34.3"
• Wheelbase 53 inch
• Seat Height 36.2 inch
• Ground Clearance 12.2 inch
• Fuel Capacity 1.72G
• N.W 251 lbs G.W 291 lbs

Download Product Brochure
