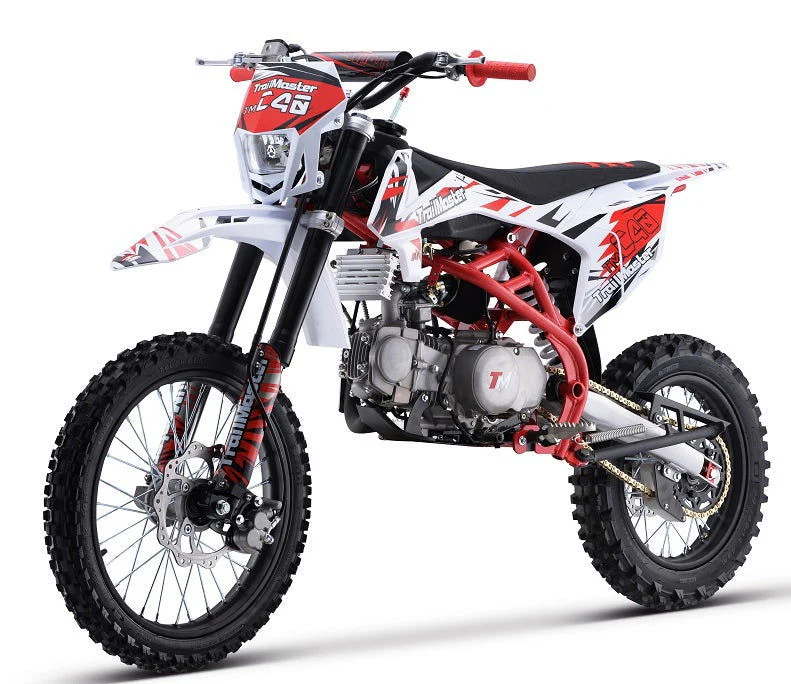

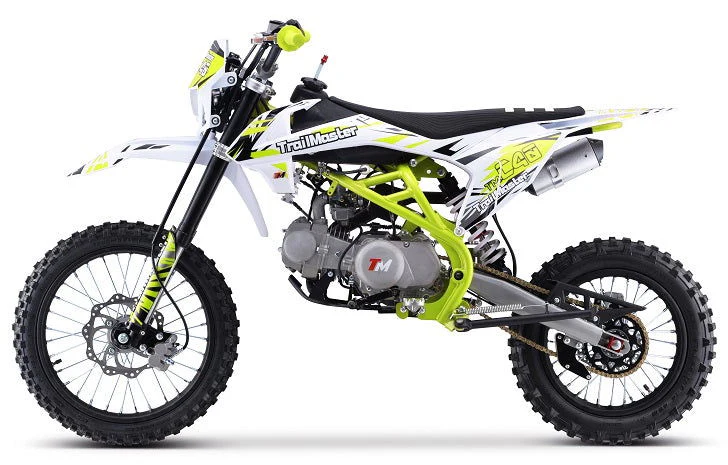

TrailMaster C40 140cc Gas Dirt Bike, 4-Speed Manual Clutch (17/14) Wheels, Ages 16 and up

The TM C40 is a great mid size dirt bike. It has a high performance 140cc 4 stroke 9.6hp engine with kick start and a top speed of around 55 MPH and a seat height of 33.5”. It is available in red, green, and orange colors. The TM C40 features a 4 speed manual transmission with front and rear disc brakes, and inverted front shocks! This is sure to be a HOT seller!

The bikes full on motocross ergonomics and race suspension system make handling feel natural and unforced, and help it navigate over almost any type of terrain. Electronic CDI ignition makes kick starting effortless, keeps the bike running smoothly in all gears and provides a broad, even power band. And at only 172 pounds, the 140cc engine can propel the motorcycle to speeds of 55 miles per hour.

Features:

• Powerful 140cc 4-stroke oil cooled engine
• Kick start
• 4-speed, manual clutch
• 49.8 “ wheel base and 33.5” seat high
• Front tire 17”/Rear Tire 14”
• Hydraulic front and rear disc brakes
• Aluminum handle bar
• LED Headlight
• Foldable Clutch & Brake Lever

Specifications

Engine System

• Engine Type ZM-Single Cylinder, 4-Stroke, Oil Cooling
• Displacement 140 ml
• Max Power 7.2 /8500（1±5%） kw/r/min
• Max Torque 9.5 /6000（1±5%） N.m/r/min
• Compression Ratio 8.6:1
• Bore and Stroke 56 x 57 (mm×mm)
• Shift Type N-1-2-3-4, Four-Gear Manual Shift
• Start Type Kick Start
• Ignition CDI
• Min. Fuel Consumpetion: ≤367g/kw.h
• Engine Oil #： SJ-5W/40
• Transmission Chain Drive; #428 & 110L Chain，14/41T

Size Data

• Overall Size (L x W x H) 71.3"*28.9"*43.3"(1810*735*1100MM)
• Wheel Base 49.8" (1265MM)
• Seat Height 33.5" (850MM)
• Ground Clearance 13" (330MM)
• Fuel Capacity 4.5 L/1.2 Gal.
• Tires FT: 70/100-17 - RR: 90/100-14 Knobby tires
• Wheels Steel 1.6 x 17" / 1.85 x 14" Rims, DCA Hubs

Frame/Suspension/Brake system/More features

• Frame Twin Girders Steel Tube Frame
• Front Fork Inverted 45*48-735mm Forks, Non-Adjustable
• Rear Shock ￠10*￠11*310mm ,Spring Per-load
• Swing-Arm Steel Tube 14inch
• Handle Bar Steel Crossbar ,L=720mm; Dia=22mm
• Front Brake Hydraulic Twin Piston Caliper, 220mm Disc
• Rear Brake Hydraulic Single Piston Caliper, 190mm Disc
• Exhaust Steel Pipe with catalyst converter(EPA Standard)
• Brake & Clutch Lever Foldable
• Seat Ribbed TrailMaster Seat
• HeadLight LED
• Packing and Loading
• Packing Size(inch) 62.6x14.8x29.9 inch
• N.W/LBS 172 LBS
• G.W/LBS 203 LBS
