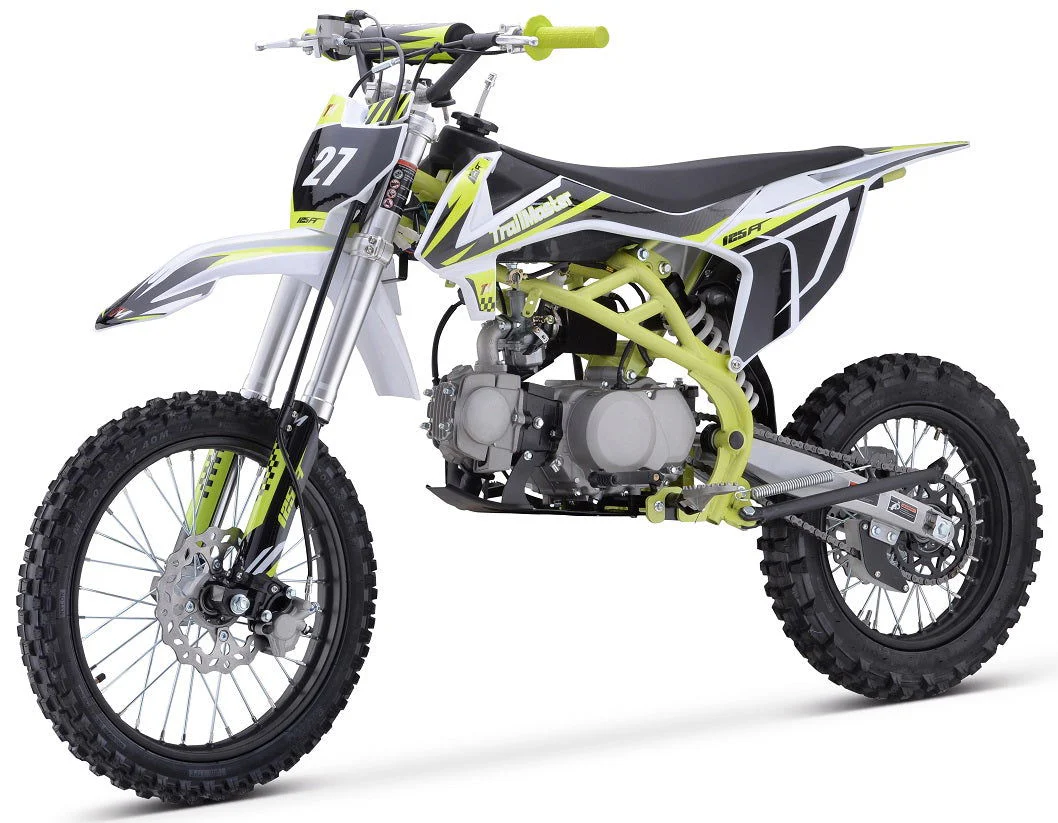

TrailMaster TM27 125cc Large Frame, Dirt Bike 4-Speed Manual (17/14), Ages 12 and up

The TM 27‐125 has a LARGER FRAME and comes with a High-performance 125cc 4-stroke 8.3hp gas engine with kick-start and a top speed of around 55 MPH and a seat height of 33.5”. It is available in red, blue, green, and orange colors.

The TM27 features a 4-speed manual transmission with front and rear disc brakes, inverted front shock, and a larger (70” Long) heavy duty frame

Large 17" Front Wheel and 14" Rear Wheel, and the bikes' full on motocross ergonomics and race suspension system make handling feel natural and unforced, and help it navigate over almost any type of terrain. Electronic CDI ignition makes kick starting effortless, keeps the bike running smoothly in all gears and provides a broad, even power band. And at only 172 pounds, the 125cc engine can propel the motorcycle to speeds of 55 miles per hour.

Specifications

Engine System

• Engine Type: ZM125cc, Single Cylinder, 4‐Stroke, Air Cooled
• Displacement: 124 cc
• Max Power: 8.3hp
• Max Torque: 6.64 lbf.ft

• Compression Ratio: 9.6:1
• Shift Type: N‐1‐2‐3‐4, Four‐Gear Manual Shift
• Start Type: Kick Start
• Ignition: CDI
• Min. Fuel Consumption: ≤367g/kw.h
• Max Range: ≤10.5mile

• Engine Oil: 5W-30
• Transmission: Chain Drive; #428, 14/41T

Size Data

• Overall Size (L x W x H): 71.3"X28.9"X43.3"
• Wheelbase: 49.8"
• Seat Height: 33.5"
• Ground Clearance: 13"
  Fuel Capacity: 1.2 Gal/4.5 L
• Tires: FT: 70/100‐17 ‐ RR: 90/100‐14 Knobby tires
• Wheels: Steel 1.6 x 17" / 1.85 x 14" Rims, Cast Hubs

Frame/Suspension/Brake System

• Frame: Twin Girders Steel Tube
• Front Fork Inverted 45*48‐735mm Forks, Non‐Adjustable
• Rear Shock: ￠10*￠11*310mm ,Spring Per‐load
• Swing‐Arm: Steel Tube 14inch
• Handlebar: Steel Crossbar ,L=720mm; Dia=22mm
• Front Brake: Hydraulic Single Piston Caliper, 210mm Disc
• Rear Brake: Hydraulic Single Piston Caliper, 190mm Disc
• Exhaust Steel Pipe with catalyst converter (EPA Standard)
• Packing Size: (inch) 62.6x14.8x29.9”
• N.W: 143.3 LBS
• G.W: 172 LBS

Download Product Brochure
