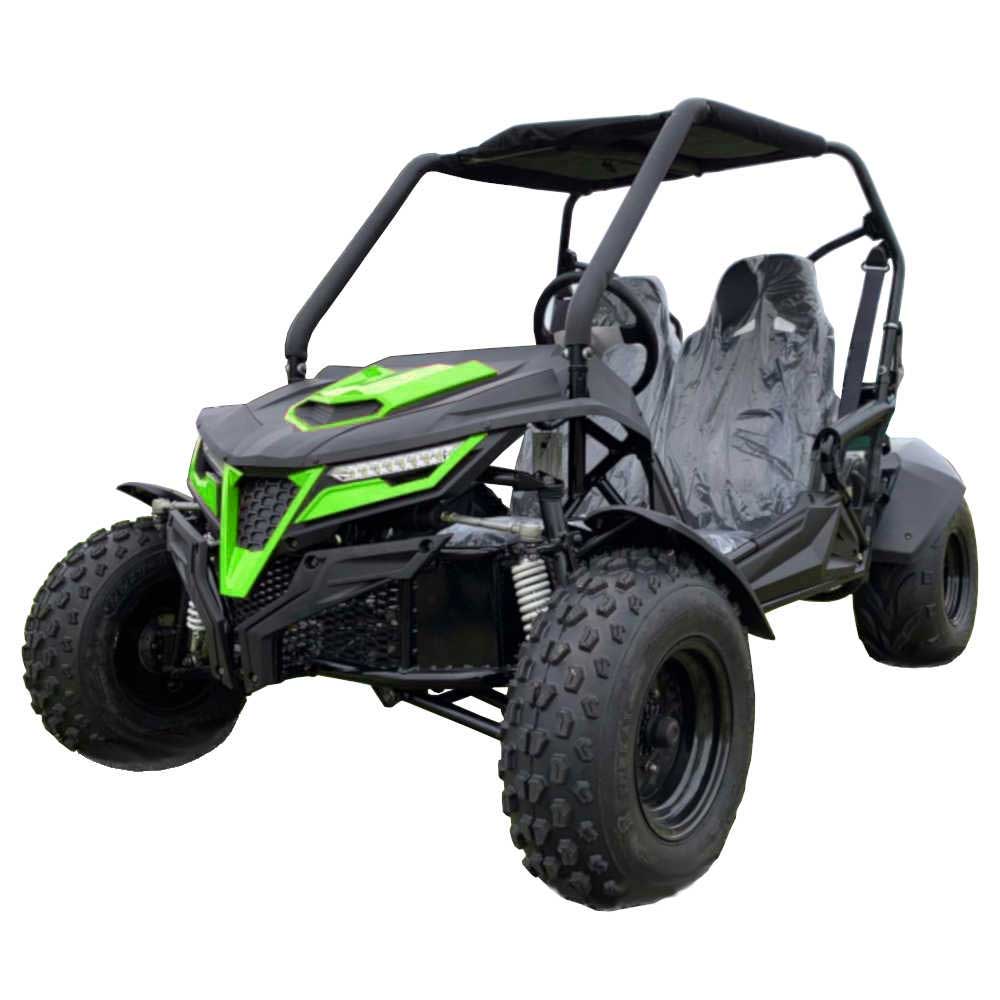

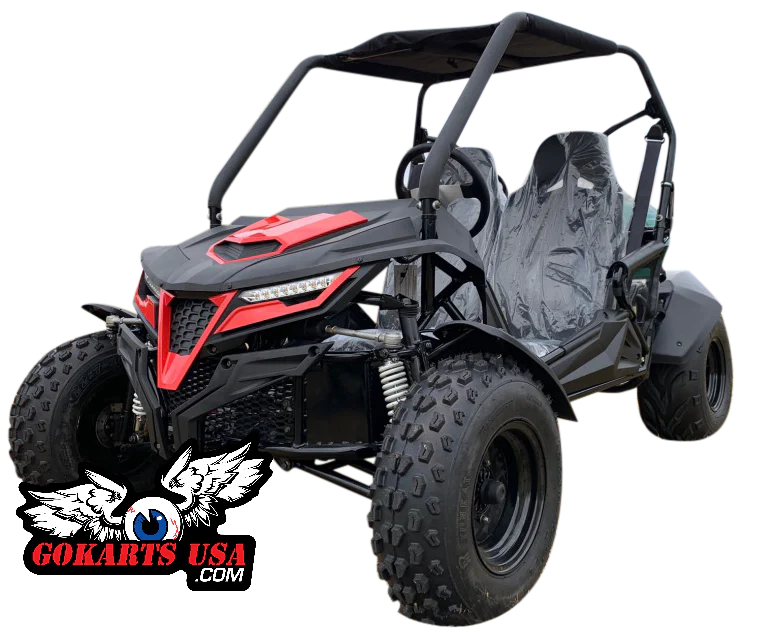

TrailMaster Cheetah 200 Full Size Buggy Go Kart, CVT Automatic with Reverse

FEATURES:

• Reliable GY6 200 Engine
• Keyed Electric Start
• CVT Automatic Transmission with Reverse
• Hydraulic Disc Brakes
• Polished Stainless Steel Muffler
• Heavy Duty Full Suspension
• 5-Point Safety Harness
• 4-Wheel Fenders
• Adjustable Tilt Steering Wheel
• Canopy Sunshade Top
• Utility Rack
• Central Rear View Mirror
• Hi/Low Beam Headlights
• Tow Hitch

SPECIFICATIONS:

• Engine type: 200cc, 4-stroke, single cylinder, air cooled
• Max HP: 10.8hp/7500rpm
• Max torque: 12 lb ft/6000rpm
• Bore x stroke: 2.26x2.28 inches
• Max speed: 43.5 mph
• Climbing ability: 12 degrees
• Ignition: C.D.I
• Starting system: Electric
• Battery: 12V 10Ah
• Carburetor brand: Deli (Vacuum film)
• Engine oil: SAE 10/15W-40
• Clutch: Automatic CVT with reverse
• Driveline / Driving wheel: Chain / Dual wheel drive
• Suspension F / R: Double A-arm / swing-arm
• Brakes, F / R: Both hydraulic brakes, Disc
• Tires, F / R: 20x7-8 / 22x10-10
• Fuel capacity: 2.25 gal
• Adjustable Driver Seat: Pedal to Seat Back adjusts from 38" to 43"
• Weight, G.W. / N.W.: 573 / 485 lbs
• Max load: 500 lbs
• Wheelbase: 59 inches
• OA L x W x H: 85x53.1x57.5 inches
• Height to seat: 13.8 inches
• Min ground clearance: 6.7 inches
