$52.48
Original: $149.95
-65%5.175'' Briggs Model 31 AVS Rod with bearing inserts. Made in the USA from domestic 7075-T6 aluminum.—
$149.95
$52.48The Story

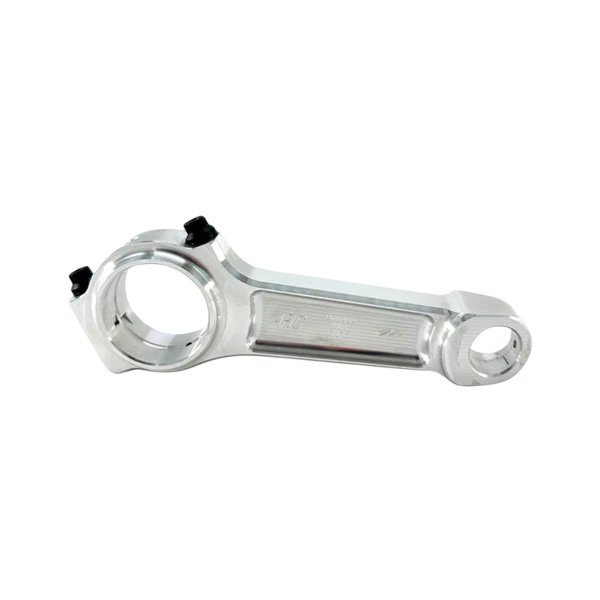

6279 ARC Connecting Rod
5.175" Briggs Model 31 AVS Rod with bearing inserts. Made in the USA from domestic 7075-T6 aluminum.
5.175" Briggs Model 31 AVS Rod with bearing inserts. Made in the USA from domestic 7075-T6 aluminum.
Fits the standard Model 31 "AVS" crankshaft with the 1.498" crank pin. It will fit the journal of both the AVS 31 and the Non-AVS OHV 31 models. The rod is about .020" longer than stock, which should bring the piston up to the deck height with the standard piston. Bearing inserts (P/N 6297) are included with the rod. Designed for the Briggs piston #594435 and wrist pin #594439. This rod requires internal clearancing.
ZongShen Applications:
Can be used in 625cc and 675cc ZongShen Engines if crankshaft journal is ground to 38mm.
ZongShen Applications:
Can be used in 625cc and 675cc ZongShen Engines if crankshaft journal is ground to 38mm.
Rod bolt torque: 26 ft/lbs Lubricated
Description
6279 ARC Connecting Rod
5.175" Briggs Model 31 AVS Rod with bearing inserts. Made in the USA from domestic 7075-T6 aluminum.
5.175" Briggs Model 31 AVS Rod with bearing inserts. Made in the USA from domestic 7075-T6 aluminum.
Fits the standard Model 31 "AVS" crankshaft with the 1.498" crank pin. It will fit the journal of both the AVS 31 and the Non-AVS OHV 31 models. The rod is about .020" longer than stock, which should bring the piston up to the deck height with the standard piston. Bearing inserts (P/N 6297) are included with the rod. Designed for the Briggs piston #594435 and wrist pin #594439. This rod requires internal clearancing.
ZongShen Applications:
Can be used in 625cc and 675cc ZongShen Engines if crankshaft journal is ground to 38mm.
ZongShen Applications:
Can be used in 625cc and 675cc ZongShen Engines if crankshaft journal is ground to 38mm.
Rod bolt torque: 26 ft/lbs Lubricated
